Oil Pan Removal

Reference: CYLINDER HEAD REMOVAL - LEFT SIDE

Reference: CYLINDER HEAD REMOVAL - RIGHT SIDE

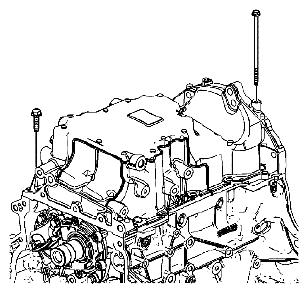

Fig 1: Identifying Oil Pan Bolts

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the oil pan bolts.
   Fig 2: Identifying Points Located Edge Of Oil Pan

   Courtesy of SUZUKI OF AMERICA CORP.
2. Using the pry points located at the edge of the oil pan separate the RTV sealant.

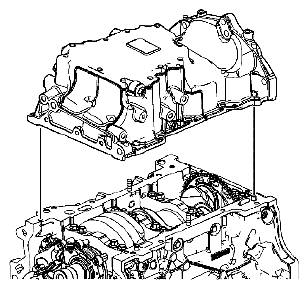

   Fig 3: Identifying Oil Pan From Block

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the oil pan from the block.

   Reference: OIL PAN DISASSEMBLE
