Installation Procedure

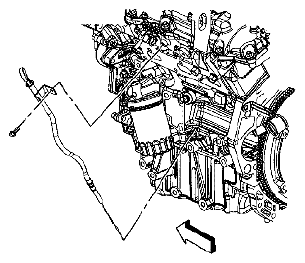

Fig 1: Identifying Oil Level Indicator Tube Bolt
G05469151Courtesy of SUZUKI OF AMERICA CORP.
  1. Install a new seal on the oil level indicator tube.
  2. Install the oil level indicator tube.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the oil level indicator tube bolt.

    Tightening torque

    Tighten the bolt to 10 N.m (89 lb in).

  4. Install the oil level indicator in the oil level indicator tube.
