Oil Level Indicator and Tube Removal

Reference: STARTER REMOVAL

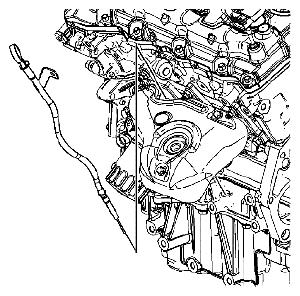

Fig 1: Identifying Oil Level Indicator Tube Bracket Bolt

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the oil level indicator tube bracket bolt.
   Fig 2: Identifying Oil Level Indicator And Lower Crankcase Hole

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the oil level indicator and tube by sliding the tube out from the lower crankcase hole.
   Fig 3: Locating O-Ring From Oil Level Indicator Tube

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove and discard the O-ring from the oil level indicator tube.
