Oil Level Indicator and Tube Installation

Fig 1: Locating O-Ring From Oil Level Indicator Tube

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW O-ring on the oil level indicator tube.

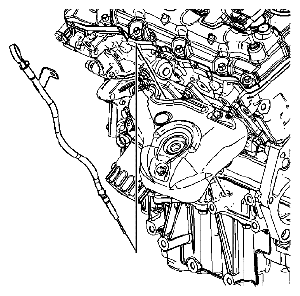

Fig 2: Identifying Oil Level Indicator And Lower Crankcase Hole
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil level indicator and tube by sliding the tube down through the lower crankcase hole.

Fig 3: Identifying Oil Level Indicator Tube Bracket Bolt
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the oil level indicator tube bracket bolt.
Tightening torque

Tighten the oil level indicator tube bracket bolt to 10 N.m (89 lb in).

Reference: EXHAUST MANIFOLD INSTALLATION - RIGHT SIDE
