Installation Procedure

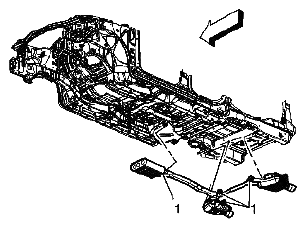

Fig 1: Identifying Exhaust Pipe Hangers Rubber Insulators

Courtesy of SUZUKI OF AMERICA CORP.

With the aid of an assistant, install the muffler assembly to the vehicle and the exhaust flexible pipe.
With the aid of an assistant, install the exhaust pipe hangers to the rubber insulators.

Fig 2: Identifying Exhaust Muffler Clamps
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Tighten the exhaust muffler clamps.
Tightening torque

Tighten the clamps to 5 N.m (44 lb in).
Lower the vehicle.
