Removal Procedure

WARNING: Refer to EXHAUST SERVICE CAUTION .
WARNING: Refer to PROTECTIVE GOGGLES AND GLOVE CAUTION .
Fig 1: Identifying Engine Wiring Harness Electrical Connector And Heated Oxygen Sensor Electrical Connector
G05469302Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the fuel injector sight shield, if necessary. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
  2. Disconnect the engine wiring harness electrical connector (3) from the heated oxygen sensor (HO2S) electrical connector (4).
  3. Remove the HO2S electrical connector retainer (5) from the retainer clip.

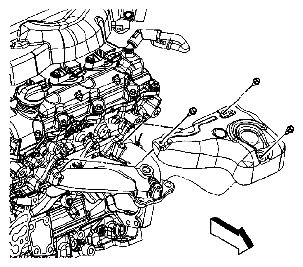

    Fig 2: Identifying Exhaust Manifold Heat Shield And Bolts
    G05469303Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the exhaust manifold heat shield bolts.
  5. Remove the exhaust manifold heat shield, sliding the shield up over the HO2S pigtail.
