Removal Procedure

WARNING: Refer to EXHAUST SERVICE CAUTION .

WARNING: Refer to PROTECTIVE GOGGLES AND GLOVE CAUTION .

Fig 1: Identifying LH Exhaust Manifold Heat Shield And Exhaust Manifold Nuts

Courtesy of SUZUKI OF AMERICA CORP.

Remove the exhaust manifold heat shield. Refer to EXHAUST MANIFOLD HEAT SHIELD REPLACEMENT - LEFT SIDE .
Remove the catalytic converter to exhaust manifold nuts (1).
Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

Fig 2: Identifying Heated Oxygen Sensor (HO2S) Electrical Connector And Engine Wiring Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the heated oxygen sensor (HO2S) electrical connector (2) from the engine wiring harness electrical connector.

Fig 3: Identifying Left Catalytic Converter And Exhaust Flexible Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove the left catalytic converter to exhaust flexible pipe bolts.

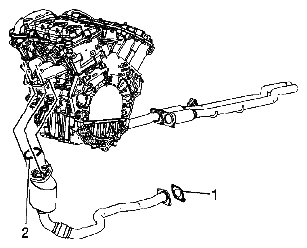

Fig 4: Identifying Exhaust Manifold And Exhaust Flexible Pipe Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the catalytic converter from the vehicle.
Remove and discard the catalytic converter to exhaust manifold gasket (2).
Remove and discard the catalytic converter to exhaust flexible pipe gasket (1).
