Installation Procedure

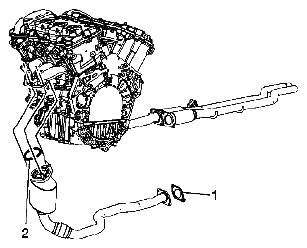

Fig 1: Identifying Exhaust Manifold Gasket And Exhaust Flexible Pipe Gasket

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW catalytic converter to exhaust manifold gasket (2) onto the catalytic converter.
Install the catalytic converter to the vehicle.
Install a NEW catalytic converter to exhaust flexible pipe gasket (1) between the converter and the flexible pipe.

Fig 2: Identifying Left Catalytic Converter And Exhaust Flexible Pipe Bolts
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the left catalytic converter to exhaust flexible pipe bolts.
Tightening torque

Tighten the bolts to 22 N.m (16 lb ft).

Fig 3: Identifying HO2S Electrical Connector And Engine Wiring Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the HO2S electrical connector (2) to the engine wiring harness electrical connector.
Lower the vehicle.

Fig 4: Identifying Catalytic Converter To Exhaust Manifold Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the catalytic converter to exhaust manifold nuts (1).
Tightening torque

Tighten the nuts to 50 N.m (37 lb ft).
Install the exhaust manifold heat shield. Refer to EXHAUST MANIFOLD HEAT SHIELD REPLACEMENT - LEFT SIDE .
