Ambient Air Temperature Sensor Replacement

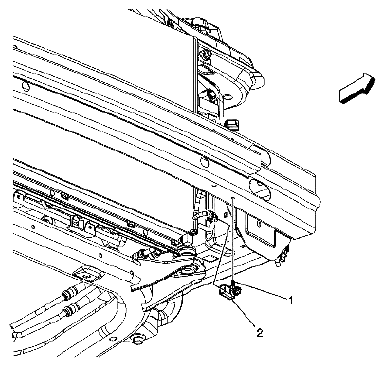

Fig 1: Identifying Ambient Air Temperature Sensor
G05471134Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS NAME REFERENCE

Callout Component Name
1 Ambient Air Temperature Sensor Retainer
2 Ambient Air Temperature Sensor
Tip:  Disconnect the electrical connector.
