Instrument Panel Electrical Center or Junction Block Replacement

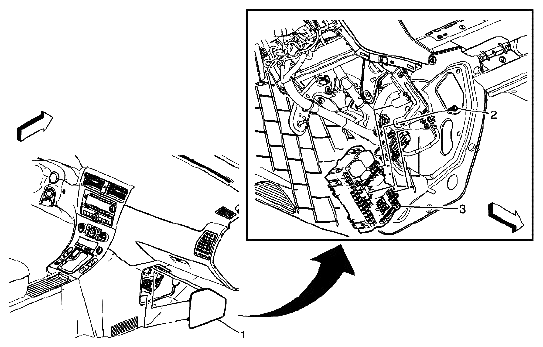

Fig 1: Identifying Instrument Panel Electrical Center Or Junction Block Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Disconnect the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1	Fuse Panel
2	Instrument Panel Wiring Harness Junction Block Screw CAUTION: Refer to FASTENER NOTICE . Tightening torque  2.5 N.m (22 lb in)
3	Instrument Panel Wiring Harness Junction Block Assembly Procedure  Disconnect the electrical connector.
