Removal Procedure

Follow the steps below in order to remove terminals from the connector.

1. Slide the lever lock forward while pressing down on the lever lock release tab.

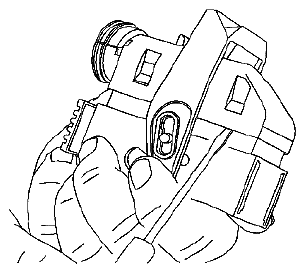

   Fig 1: Sliding Lever Lock Forward

   Courtesy of SUZUKI OF AMERICA CORP.

   The release tab is located on the top of the wiredress cover.

   Fig 2: Releasing Tab Is Located On Top Of Wiredress Cover

   Courtesy of SUZUKI OF AMERICA CORP.

   View of connector in released position.

2. Disconnect the connector from the component.
3. Locate the dress cover locking tabs at the corners of the dress cover. Use a small flat-blade tool to release the locking tabs and remove the dress cover.
   Fig 3: Sliding Terminal Position Assurance

   Courtesy of SUZUKI OF AMERICA CORP.
4. Use a small flat-blade tool to slide the terminal position assurance (TPA) up one notch on both ends of the connector. The TPA is located underneath the wire dress cover.
   Fig 4: Inserting Tool Into Terminal Release Cavity

   Courtesy of SUZUKI OF AMERICA CORP.

   For the larger terminals insert the J 38125-556 (GM P/N 12093647) tool to release the terminals by inserting the tool into the terminal release cavity. For the smaller terminals insert the J 38125-560 (GM P/N 15314260) tool to release the terminals by inserting the tool into the terminal release cavity. See the release tool cross reference in the Reference Guide of the J-38125 to ensure that the correct release tool is used.

   Fig 5: Pulling Wire Out Of Back Of Connector

   Courtesy of SUZUKI OF AMERICA CORP.
5. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
