Removal Procedure

Follow the steps below in order to remove terminals from the connector.

Fig 1: Identifying Lever Lock On Wire Dress Cover
G05470958Courtesy of SUZUKI OF AMERICA CORP.
  1. Locate the lever lock on the wire dress cover. Remove the connector position assurance (CPA) and slide the lever lock away from the connector body.
  2. Disconnect the connector from the component.
    Fig 2: Identifying Dress Cover Locking Tabs On Dress Cover
    G05470959Courtesy of SUZUKI OF AMERICA CORP.
  3. Locate the dress cover locking tabs on the dress cover of the connector. Using a small flat-blade tool release all of the locking tabs.
    Fig 3: Releasing Lower Wiredress Cover Locking Tab
    G05470960Courtesy of SUZUKI OF AMERICA CORP.
  4. Release the lower wiredress cover locking tab.
    Fig 4: Releasing Upper Wiredress Cover Locking Tab
    G05470961Courtesy of SUZUKI OF AMERICA CORP.
  5. Release the upper wiredress cover locking tab.
  6. Once the locks are unlocked, lift the dress cover off.
    Fig 5: Inserting Flat-Blade Tool Into Locking Tabs
    G05470962Courtesy of SUZUKI OF AMERICA CORP.
    NOTE: Always use care when removing a terminal position assurance (TPA) in order to avoid damaging it.
  7. Remove the TPA by inserting a small flat-blade tool into the locking tabs on both sides of the TPA. Gently pry the TPA out of the connector.
    Fig 6: Inserting Flat-Blade Tool Into Locking Tabs
    G05470963Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the nose piece by inserting a small flat-blade tool into the locking tabs on both sides of the nose piece. Gently pry the nose piece out of the connector.
    Fig 7: Releasing Terminals
    G05470964Courtesy of SUZUKI OF AMERICA CORP.
  9. Insert the J 38125-12A (GM P/N 12094429) tool to release the terminals by inserting the tool into the terminal release cavity. See the release tool cross reference in the Reference Guide of the J-38125 to ensure that the correct release tool is used.

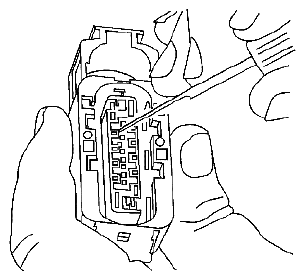

    Fig 8: Pulling Out Terminal Of Connector
    G05470965Courtesy of SUZUKI OF AMERICA CORP.
  10. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
