Front Seat Adjuster Switch Knob Replacement

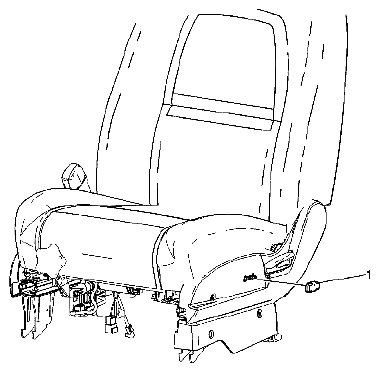

Fig 1: Identifying Front Seat Adjuster Switch Knob
G05471295Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
1 Front Seat Adjuster Switch Knob
Tip:  Using a flat-bladed tool, remove the knob from the seat switch.
