Door Lock/Indicator Schematics

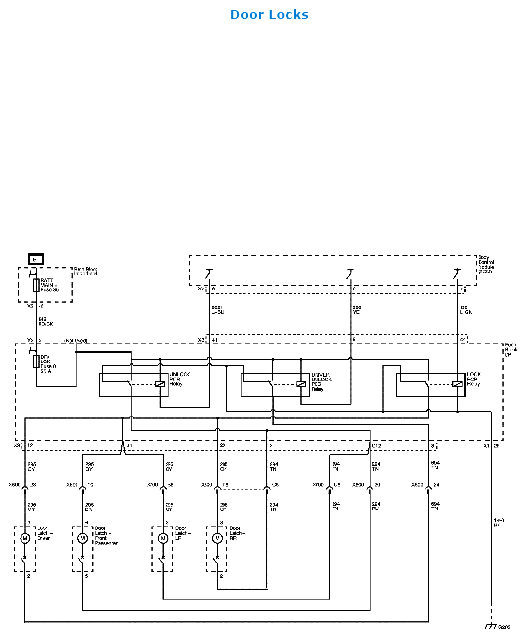

Fig 1: Door Lock/Indicator Schematic
G05471257Courtesy of SUZUKI OF AMERICA CORP.

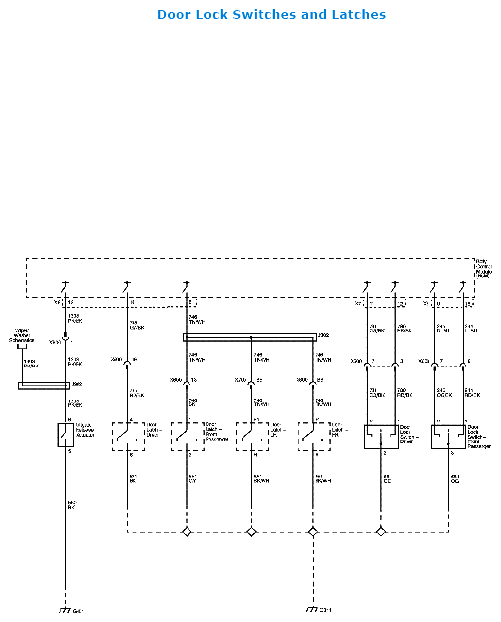

Fig 2: Door Lock Switches And Latches Schematic
G05471258Courtesy of SUZUKI OF AMERICA CORP.
