Rear Internal Gear and Front Carrier Installation

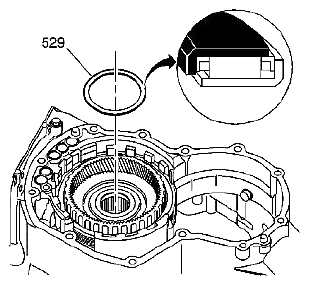

Fig 1: Identifying Front Internal Gear Thrust Bearing Assembly

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Make sure that the front internal gear thrust bearing assembly (529) is installed with the correct side up.

1. Install the front internal gear thrust bearing assembly (529) - black side up.
   Fig 2: Identifying Front Sun Gear Thrust Bearing Race And Front Carrier Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install the front carrier assembly (542).
3. Install the front sun gear thrust bearing race (543).

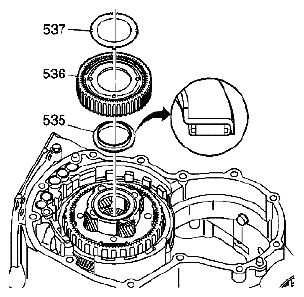

   Fig 3: Identifying Rear Internal Gear Thrust Bearing And Rear Internal Gear

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install the rear internal gear thrust bearing (535).
5. Install the rear internal gear (536).
6. Install the rear sun gear thrust bearing race (537).
   Fig 4: Installing Rear Sun Gear Thrust Bearing And Input Shaft Thrust Bearing

   Courtesy of SUZUKI OF AMERICA CORP.
7. Install the rear sun gear thrust bearing (538).
8. Install the front sun gear assembly (544).
9. Install the input shaft thrust bearing (540).

   Reference: FORWARD AND DIRECT CLUTCH ASSEMBLY INSTALLATION
