Low and Reverse Clutch Piston Removal

Reference: FRONT INTERNAL GEAR AND LOW AND REVERSE CLUTCH ASSEMBLY REMOVAL

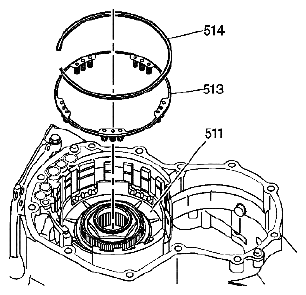

Fig 1: Identifying Low And Reverse Clutch Spring And Spring Retaining Ring

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the low and reverse clutch spring retaining ring (514) from the transmission case assembly.
2. Remove the low and reverse clutch spring assembly (513).
   Fig 2: Removing Low And Reverse Clutch Piston Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
   WARNING: Wear safety glasses when using compressed air in order to prevent eye injury.
3. While rotating the low and reverse clutch piston (511) by hand, apply compressed air into the oil passage located in the side of the transmission case and remove the low and reverse clutch piston assembly.
4. Remove the inner seal (510) and the outer seal (512) from the piston.
