Installation Procedure

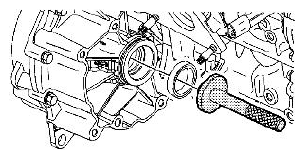

Fig 1: Installing Right Drive Axle Seal Onto Transaxle Using DT-48392 With J 8092
G05469975Courtesy of SUZUKI OF AMERICA CORP.
  1. Using the DT-48392 with J 8092, install the right drive axle seal onto the transaxle.
  2. Install the right front wheel drive shaft. Refer to FRONT WHEEL DRIVE SHAFT REPLACEMENT .
  3. Lower the vehicle.
    NOTE: Dextron® III automatic transmission fluid is not compatible with this transaxle. If Dextron® III ATF is used, transaxle failure will result. This transaxle uses GM T-IV fluid GM P/N 88900925.
  4. Inspect the transaxle fluid level. Refer to TRANSMISSION FLUID CHECK .
