Suzuki
>>
2008
>>
XL7 Base, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Seat Belts
>>
Schematic and Routing Diagram
>>
Seat Belt Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

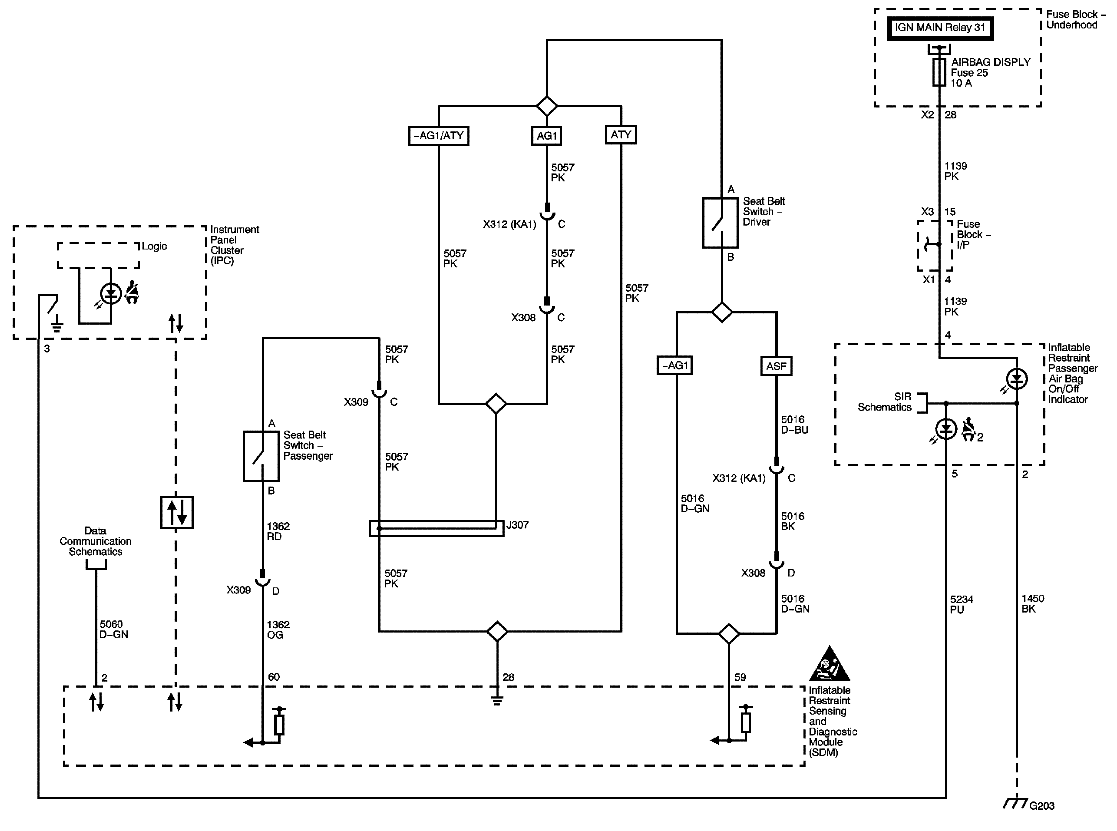

Seat Belt Schematics
Fig 1: Seat Belt Schematics Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
