Rear Seat Belt Replacement

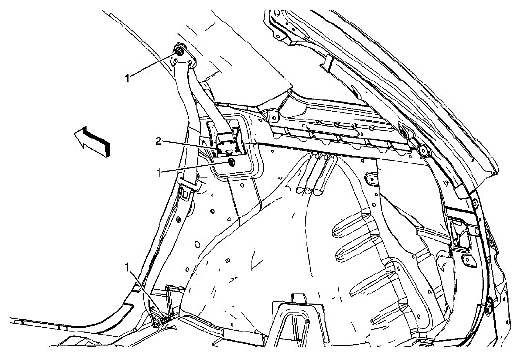

Fig 1: Identifying Rear Seat Belt Components

Courtesy of SUZUKI OF AMERICA CORP.

REAR SEAT BELT COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove the rear quarter upper trim panel. Refer to LOCK PILLAR UPPER GARNISH MOLDING REPLACEMENT (LEFT SIDE) and LOCK PILLAR UPPER GARNISH MOLDING REPLACEMENT (RIGHT SIDE) .
1	Rear Seat Belt Retractor Bolt (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tip: Apply GM P/N 12345382 (Canadian P/N 10953489), Permatex® 24200 or equivalent on all seat belt fasteners prior to installation. Tightening torque 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Tip: Make sure alignment slots are aligned correctly on reinstallation.
