Malfunction Indicator Light (Mil) "On", DTC P2610 (Control Module Ignition Off Timer Performance) Stored (TS 26 07218)

Publication date: 2008-07-21
Reference number: TS 26 07218

MALFUNCTION INDICATOR LIGHT (MIL) "ON", DTC P2610 (CONTROL MODULE IGNITION OFF TIMER PERFORMANCE) STORED

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 26 07218, Date of Issue: July 21, 2008

SUZUKI:	2008 XL7 (JC636)
SECTION:	Engine
Division:	Automotive
Category:	Technical

CONDITION

ECM incorrectly sets DTC P2610 (Control Module Ignition OFF Timer Performance) and illuminates the MIL.

CAUSE

N/A

CORRECTION

DO NOT REPLACE THE ENGINE CONTROL MODULE (ECM)! Please follow the service manual procedure to reprogram the ECM with the latest software. Be sure to click "Clear DTC's" after programming finishes. See below.

PART(S) INFORMATION

PART INFORMATION CHART

Part Numbers	Description	QTY	Notes
33920-78J10	Fuel Injection Controller (ECM)	0	Do not replace for the above symptom.

REQUIRED TOOLS AND SOFTWARE

REQUIRED TOOLS AND SOFTWARE SPECIFICATION

Part Numbers	Description	QTY	Notes
99963-00025	Tech 2 Kit	1
SPX3000118	32mb Card	1	Must be updated with current version from TIS2WEB
J-45289	CANdi module	1	Connected in line of the Data Link Cable (DLC)
N/A	PC	1	Must meet minimum requirements for TIS2WEB
N/A	TIS2WEB	1	Link found in Suzuki Pitstop under "OBD-ODB II & Diagnostics"

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION CHART

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
FB32P0	Fuel Injection Controller (ECM)	33920-78J10	36	48	0.5 Hrs.

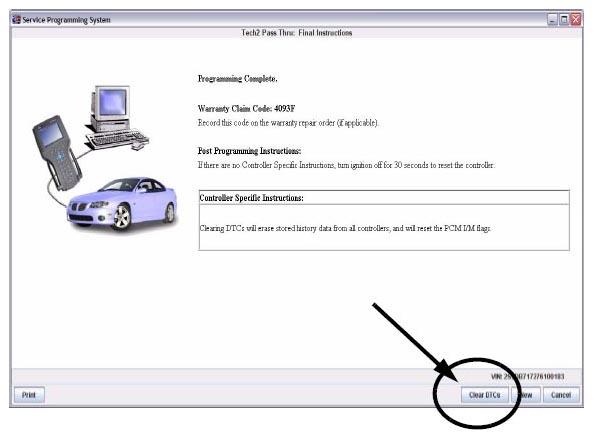

Fig 1: Screen Display - Clear DTCs

NOTE: The tire pressure monitoring system (TPMS) may not show tire pressures after programming.
This is normal, the vehicle will have to be driven for the sensors to wake up and update the information.
