HVAC Schematics

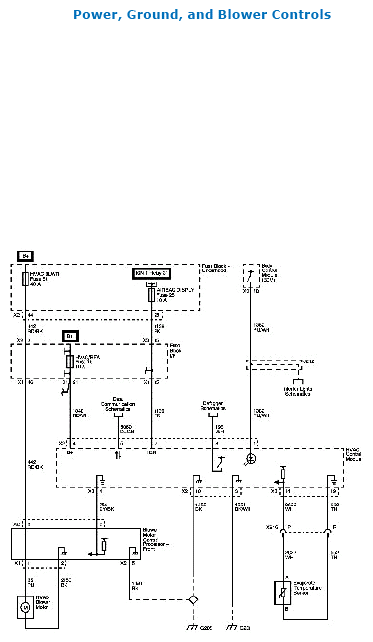

Fig 1: Power, Ground, And Blower Controls - Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

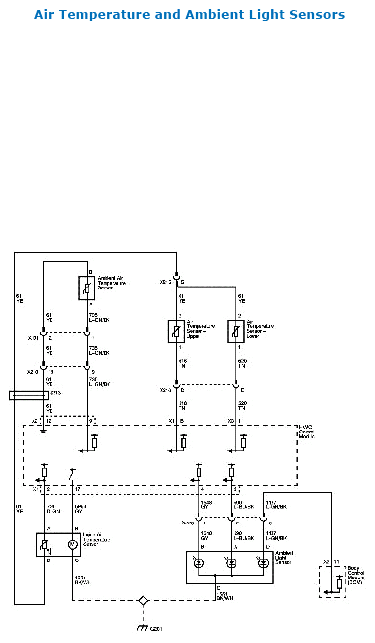

Fig 2: Air Temperature And Ambient Light Sensors - Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

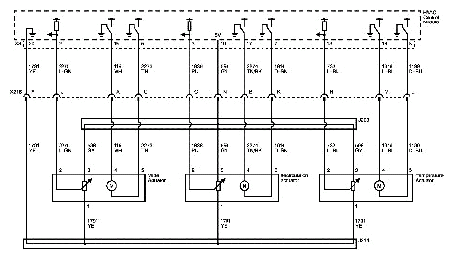

Fig 3: Mode, Recirculation, And Temperature Actuators - Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

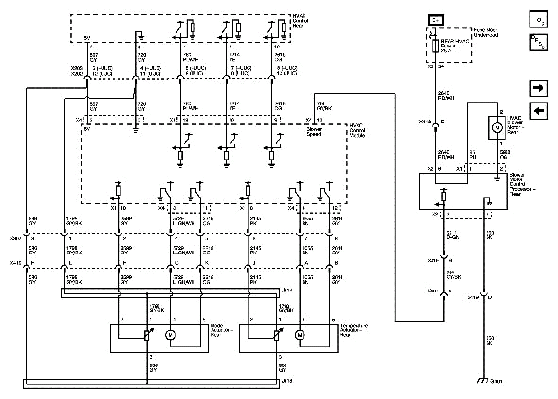

Fig 4: Rear HVAC Controls And Actuators - Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: A/C Compressor Controls - Schematics Diagram

Courtesy of SUZUKI OF AMERICA CORP.
