Heater and Air Conditioning Control Replacement

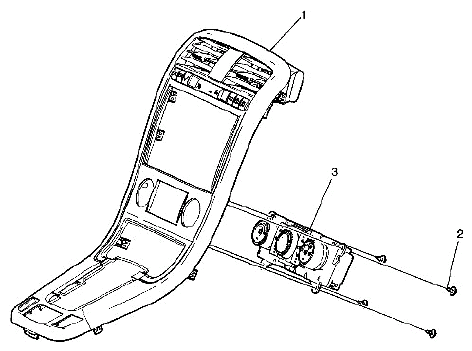

Fig 1: Identifying Heater And Air Conditioning Control

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Instrument Panel Accessory Trim Bezel Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT .
2	HVAC Control Assembly Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque  1.5 N.m (13 lb in)
3	HVAC Control Module Assembly Procedure  Reprogram the HVAC Control Module. Refer to CONTROL MODULE REFERENCES .
