Auxiliary Mode Valve Actuator Replacement

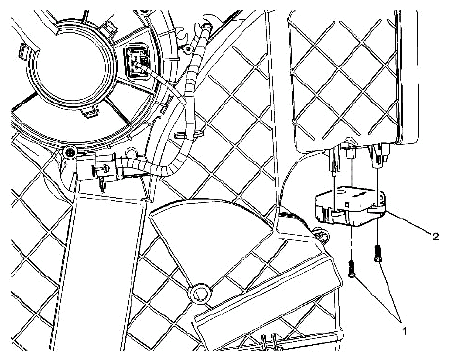

Fig 1: Identifying Auxiliary Mode Valve Actuator And Screws
G05470637Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedure
  1. Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
  2. Disconnect the electrical connector.
  3. Calibrate the actuators. Refer to ACTUATOR RECALIBRATION .
1 Auxiliary Mix Door Actuator Screw (Qty: 2)
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Auxiliary Mix Door Actuator
Tip:  The mix door actuator is mounted below the air duct outlet side of the module.
