Auxiliary Heater Core Replacement

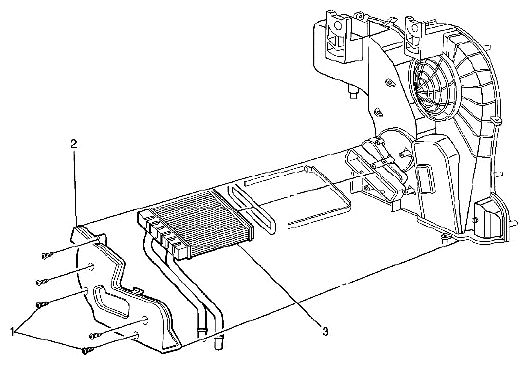

Fig 1: Identifying Auxiliary Heater Core Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the thermal expansion valve. Refer to AUXILIARY AIR CONDITIONING EVAPORATOR THERMAL EXPANSION VALVE REPLACEMENT . Remove the auxiliary HVAC module. Refer to AUXILIARY HVAC MODULE REPLACEMENT Disconnect the electrical connectors.
1	Auxiliary Heater Core Cover Screw (Qty: 6). CAUTION: Refer to FASTENER NOTICE . Tightening torque 1.5 N.m (13 lb in)
2	Auxiliary Heater Core Cover
3	Auxiliary Heater Core Assembly Tip: Ensure the heater core gasket is in good condition upon installation.
