Auxiliary Blower Motor Replacement

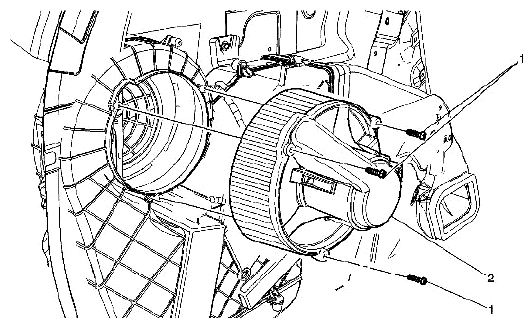

Fig 1: Identifying Auxiliary Blower Motor And Screws
G05470620Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedure
Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
1 Auxiliary blower motor screws (Qty 3).
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
1.5 N.m (13 lb in)
2 Auxiliary blower motor.
Tip:  Disconnect electrical connection.
