Auxiliary Air Distributor Lower Duct Replacement

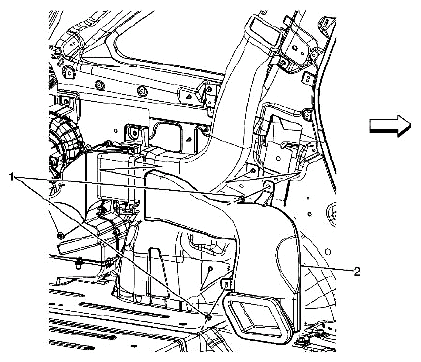

Fig 1: Identifying Auxiliary Air Distributor Lower Duct Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
1	Auxiliary Air Distribution Duct Nuts (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  8 N.m (71 lb in)
2	Auxiliary Air Distribution Duct
