Air Temperature Sensor Replacement - Upper

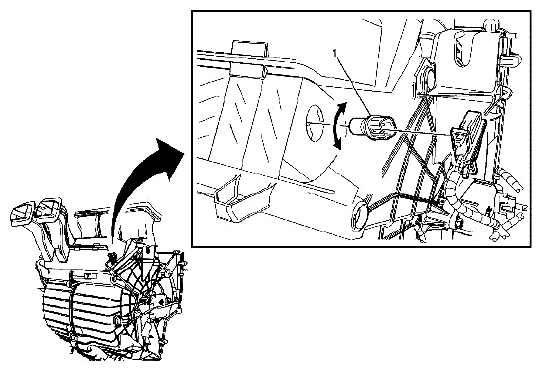

Fig 1: Identifying Air Temperature Sensor - Upper
G05470638Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedure
  1. Remove I/P Compartment. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
  2. Disconnect electrical connections.

    Tip:  Reposition upper duct to gain access to air temperature sensor.
1 Air Temperature Sensor - Upper
Tip:  Rotate sensor 1/4 turn to remove
