Air Temperature Sensor Replacement - Lower

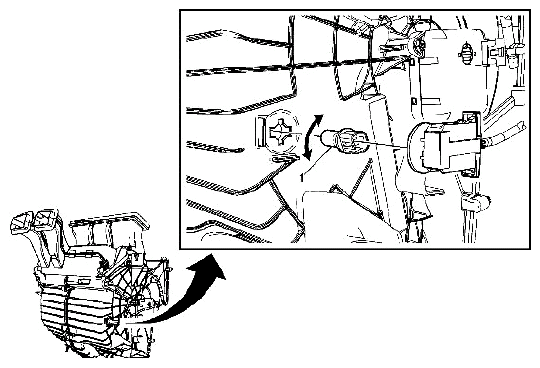

Fig 1: Identifying Air Temperature Sensor - Lower
G05470639Courtesy of SUZUKI OF AMERICA CORP.
COMPONENT NAME CHART

Callout Component Name
Preliminary Procedure
  1. Remove I/P Compartment. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
  2. Disconnect electrical connections.
1 Air Temperature Sensor - Lower
Tip:  Rotate sensor 1/4 turn to remove
