Installation Procedure

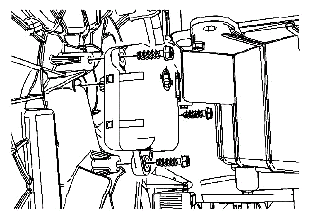

Fig 1: Identifying Air Temperature Actuator And Screws
G05470635Courtesy of SUZUKI OF AMERICA CORP.
  1. Align the air temperature actuator with the door shaft and rotate into position.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the air temperature actuator screws to the HVAC module.

    Tightening torque

    Tighten the screws to 1.5 N.m (13 lb in).

  3. Connect the electrical connector to the air temperature actuator.
    NOTE: Any time an actuator or the HVAC control module is replaced, the HVAC control module must be calibrated to ensure proper air distribution.
  4. Calibrate the actuators. Refer to ACTUATOR RECALIBRATION .
  5. Cycle the ignition and verify proper operation.
  6. Install the I/P compartment. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
