Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

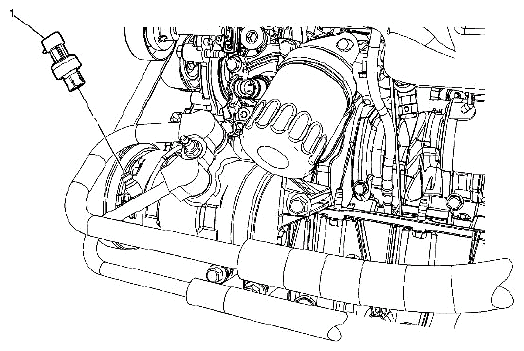

Fig 1: Identifying Air Conditioning (A/C) Refrigerant Pressure Sensor

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure  Disconnect the electrical connector from the refrigerant pressure sensor.
1	Refrigerant Pressure Sensor CAUTION: Refer to FASTENER NOTICE . Procedure  Lubricate the refrigerant pressure sensor O-ring with mineral oil. Refer to O-RING REPLACEMENT . Hand start the refrigerant pressure sensor to the compressor hose, taking care not to pinch the O-ring and tighten. Tightening torque  4 N.m (35 lb in)
