Installation Procedure

Fig 1: Identifying Intake Camshaft Position Actuator Solenoid Valve Bolt

Courtesy of SUZUKI OF AMERICA CORP.

Inspect the CMP actuator solenoid valve seal for damage. Replace the seal if necessary.
Install the CMP actuator solenoid valve.
CAUTION: Refer to FASTENER NOTICE .
Install the CMP actuator solenoid valve bolt.
Tightening torque

Tighten the bolt to 10 N.m (89 lb in).

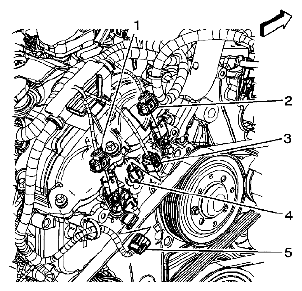

Fig 2: Identifying Engine Wiring Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the engine wiring harness electrical connector (3) to the bank 1 intake CMP actuator solenoid valve.
Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
