Evaporative Emissions Hose Routing Diagram

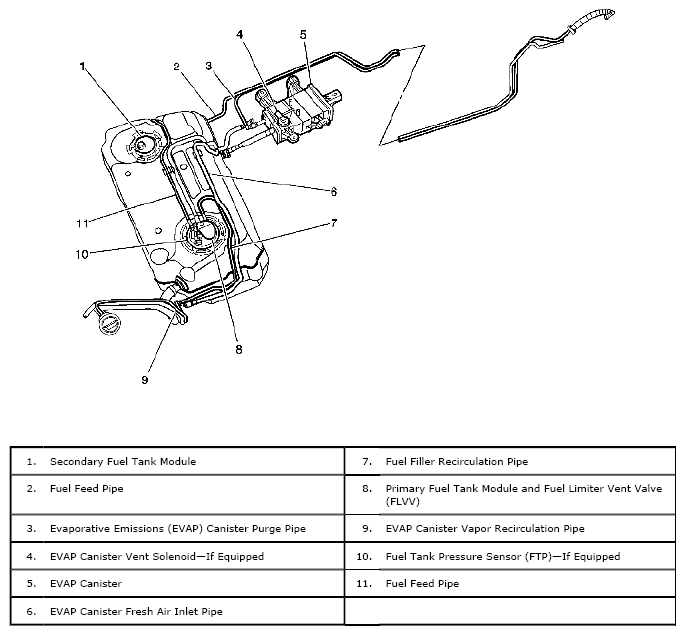

Fig 1: Identifying Secondary Fuel Tank Module, EVAP Canister, FTP Sensor And EVAP Canister Purge Pipe
G05465098Courtesy of SUZUKI OF AMERICA CORP.
