Mode 6 - SUZUKI: RENO

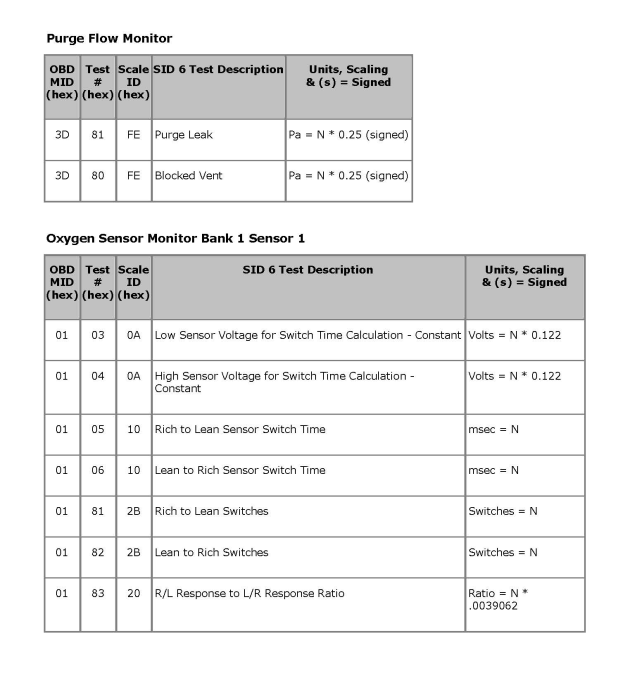

Fig 1: Mode $06 Data For Reno (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

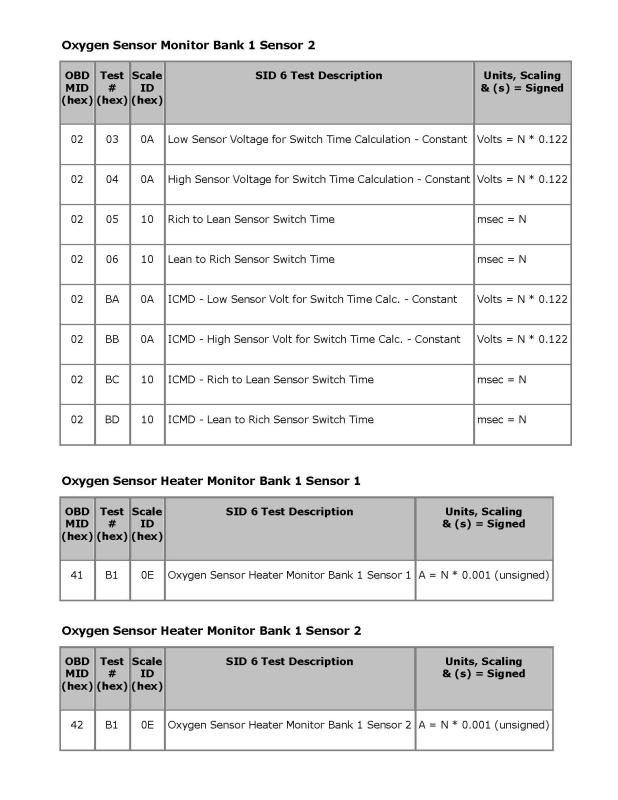

Fig 2: Mode $06 Data For Reno (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

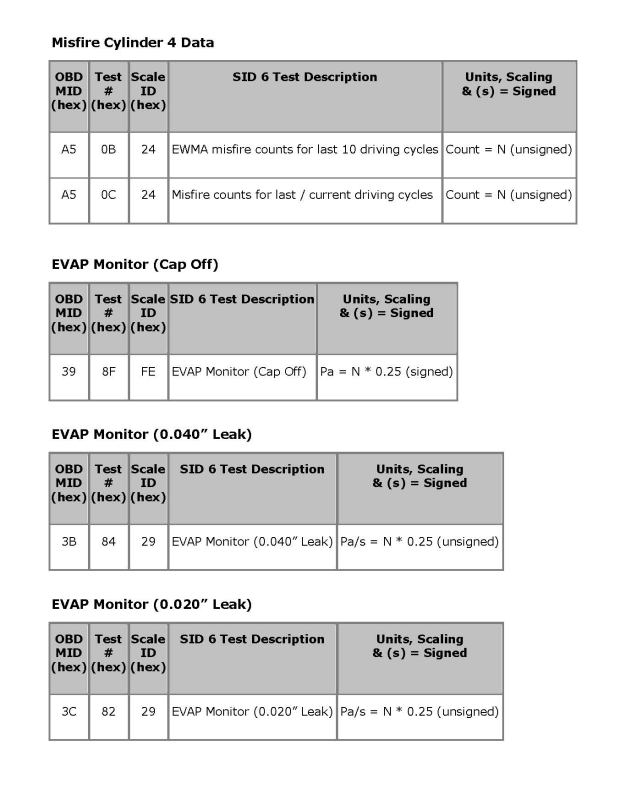

Fig 3: Mode $06 Data For Reno (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

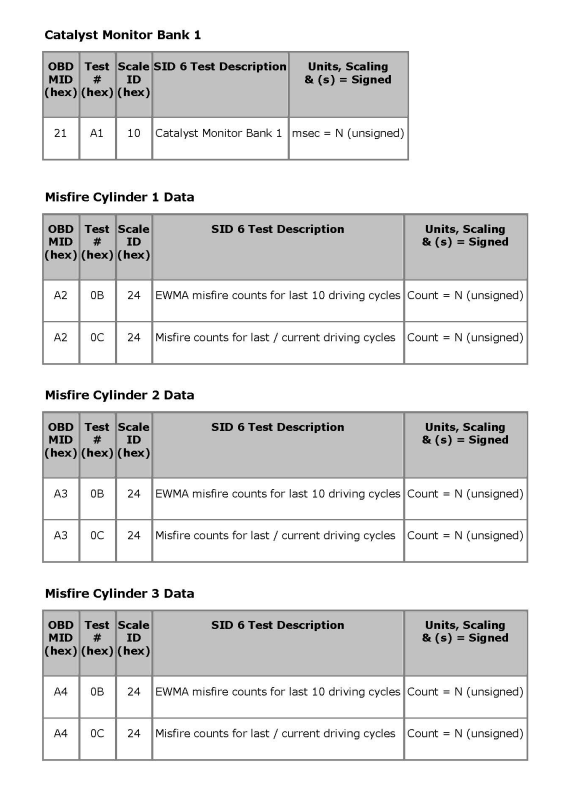

Fig 4: Mode $06 Data For Reno (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

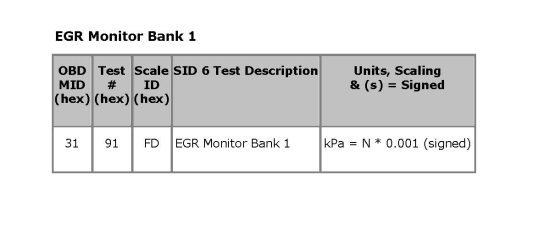

Fig 5: Mode $06 Data For Reno (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
