Removal Procedure

Fig 1: Identifying Engine Wiring Harness Electrical Connector And Ignition Coil
G05469244Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT .
  2. Disconnect the engine wiring harness electrical connector(s) (5) from the ignition coil(s).

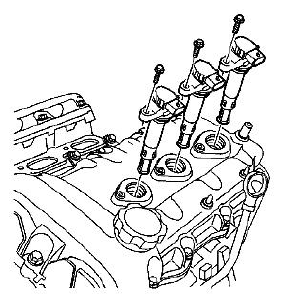

    Fig 2: Identifying Ignition Coil Bolt And Ignition Coil
    G05469245Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the ignition coil bolt(s).
  4. Remove the ignition coil(s).
