Primary Camshaft Drive Chain Guide Installation - Lower (Fourth Design)

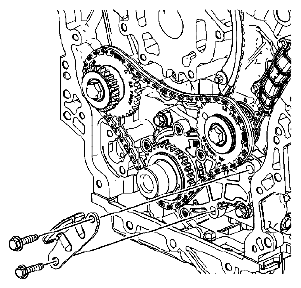

Fig 1: Identifying Primary Camshaft Drive Chain Lower Guide And Bolts
G05468951Courtesy of SUZUKI OF AMERICA CORP.
  1. Position the primary camshaft drive chain lower guide to the oil pump.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the primary camshaft drive chain lower guide bolts.

    Tightening torque

    Tighten the primary camshaft drive chain lower guide bolts to 23 N.m (17 lb ft)  .

    Reference: PRIMARY CAMSHAFT DRIVE CHAIN GUIDE INSTALLATION - UPPER (FOURTH DESIGN)
