Installation Procedure

If necessary, perform the following steps:
- Install the coolant sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR REPLACEMENT .
- Assemble the cylinder head. Refer to CYLINDER HEAD ASSEMBLE .
- Install the camshaft. Refer to CAMSHAFT INSTALLATION - LEFT SIDE .
- Install the exhaust manifold to the cylinder head. Refer to EXHAUST MANIFOLD INSTALLATION - LEFT SIDE .

  Fig 1: Identifying Cylinder Head Gasket
  Courtesy of SUZUKI OF AMERICA CORP.
Install a NEW cylinder head gasket.

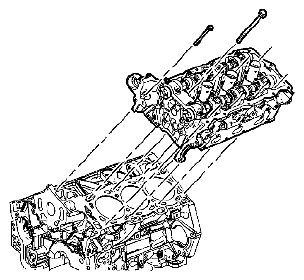

Fig 2: Identifying Cylinder Head With Exhaust Manifold
Courtesy of SUZUKI OF AMERICA CORP.
Carefully install the cylinder head with the exhaust manifold to the engine. Refer to CYLINDER HEAD INSTALLATION - LEFT SIDE .
Install the camshaft position actuator solenoid valve. Refer to CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 2 (LEFT SIDE) INTAKE and CAMSHAFT POSITION ACTUATOR SOLENOID VALVE SOLENOID REPLACEMENT - BANK 2 (LEFT SIDE) EXHAUST .
Install the catalytic converter to the exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT - LEFT SIDE .
Connect the wiring harness electrical connector located at the side of the cylinder head.

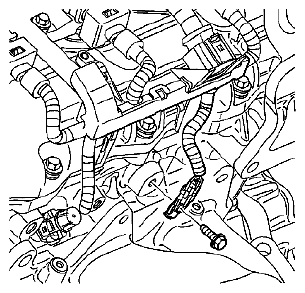

Fig 3: Identifying Cylinder Head Wiring Harness Ground
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the wiring harness ground to the cylinder head.
Tightening torque

Tighten the wiring harness ground bolt to 10 N.m (89 lb in) .
Install the coolant temperature sensor electrical connector.
Install the oil level indicator. Refer to OIL LEVEL INDICATOR AND TUBE REPLACEMENT .
Install the left bank secondary timing chain. Refer to SECONDARY CAMSHAFT DRIVE CHAIN REPLACEMENT - LEFT SIDE .
