Crankshaft Balancer Removal

Reference: ENGINE COOLANT THERMOSTAT HOUSING REMOVAL

Special Tool

EN 46106 Flywheel Holding Tool

J 38416-2 Crankshaft Button

J 41816 Crankshaft Balancer Remover

Fig 1: Identifying EN 46106 Flywheel Holding Tool

Courtesy of SUZUKI OF AMERICA CORP.

1. Install the EN 46106 through the starter mounting hole.
   Fig 2: Identifying Crankshaft Balancer Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the crankshaft balancer bolt.

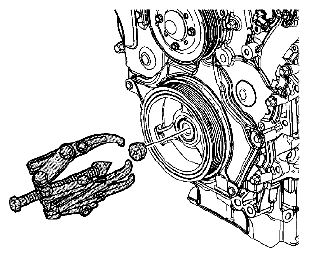

   Fig 3: Identifying Special Tools J 38416-2 And J 38416

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install the J 38416-2 in the nose of the crankshaft.
4. Install the J 41816 in order to remove the crankshaft balancer.
5. Tighten the center bolt of the J 41816 in order to pull the crankshaft balancer off of the crankshaft.
6. Remove the J 41816 from the crankshaft balancer.
   Fig 4: Identifying EN 46106 Flywheel Holding Tool

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the EN 46106.

   Reference: CRANKSHAFT BALANCER CLEANING AND INSPECTION
