Exhaust Manifold Removal - Left Side

Reference: OIL FILTER ADAPTER REMOVAL

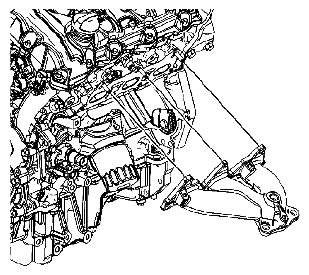

Fig 1: Identifying Left Exhaust Manifold Heat Shield Bolts

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the left exhaust manifold heat shield bolts.

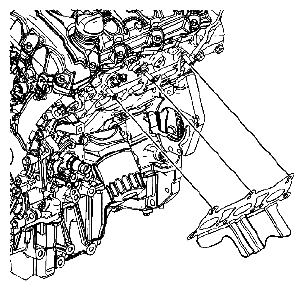

   Fig 2: Identifying Left Exhaust Manifold Heat Shield

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the left exhaust manifold heat shield.

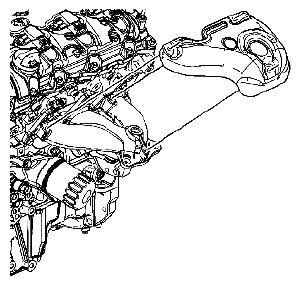

   Fig 3: Identifying Left Exhaust Manifold Lower Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the left exhaust manifold lower bolts from the left cylinder head.
   Fig 4: Identifying Left Exhaust Manifold Upper Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the left exhaust manifold upper bolts from the left cylinder head.
   Fig 5: Identifying Left Exhaust Manifold

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the left exhaust manifold.
   Fig 6: Identifying Left Exhaust Manifold Gasket

   Courtesy of SUZUKI OF AMERICA CORP.
6. Remove and discard the left exhaust manifold gasket.
   Fig 7: Identifying Left Cylinder Head Studs

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the studs from the left cylinder head.

   Reference: EXHAUST MANIFOLD CLEANING AND INSPECTION - LEFT SIDE
