Water Pump Removal

Reference: CAMSHAFT COVER REMOVAL - RIGHT SIDE

Special Tool

EN 46104 Water Pump Pulley Holding Tool

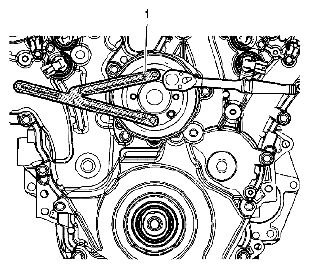

Fig 1: Installing EN 46104 To Water Pump Pulley

Courtesy of SUZUKI OF AMERICA CORP.

1. Install the EN 46104 (1) onto the water pump pulley.

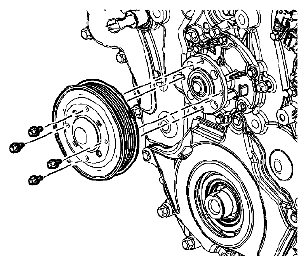

   Fig 2: Identifying Water Pump Pulley Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the water pump pulley bolts.
3. Remove the water pump pulley.

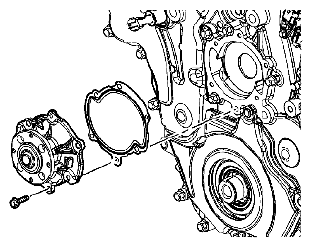

   Fig 3: Identifying Water Pump Front Cover Bolts And Gasket

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the water pump bolts.
5. Remove the water pump from the front cover.
6. Remove the water pump gasket.

   Reference: WATER PUMP CLEANING AND INSPECTION
