Water Outlet Removal

Reference: INTAKE MANIFOLD REMOVAL

Fig 1: Identifying Engine Coolant Air Bleed Hose

Courtesy of SUZUKI OF AMERICA CORP.

1. Disconnect the engine coolant air bleed hose (1) from the water outlet.
   Fig 2: Identifying Water Outlet Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the water outlet bolts.

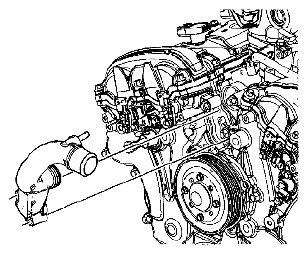

   Fig 3: Identifying Water Outlet

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the water outlet.
   Fig 4: Identifying Water Outlet Gasket And O-Ring

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove and discard the water outlet gasket and O-ring.
