Radiator Inlet Hose Replacement

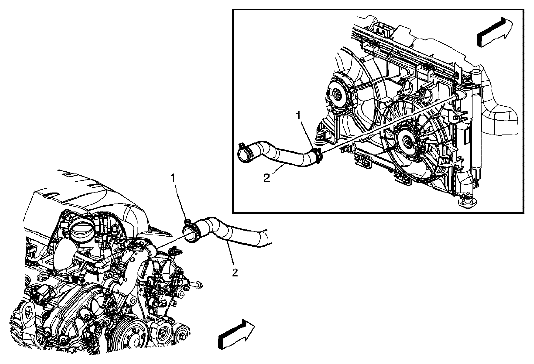

Fig 1: Identifying Radiator Inlet Hose
G05465579Courtesy of SUZUKI OF AMERICA CORP.
RADIATOR INLET HOSE REPLACEMENT PROCEDURE

Callout Component Name
Preliminary Procedure
Drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL)  or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
1 Radiator Inlet Hose Clamps
2 Radiator Inlet Hose
