Removal Procedure

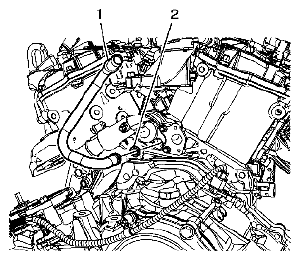

Fig 1: Identifying Heater Pipe Outlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL) or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
Remove the heater pipe outlet hose (1) from the heater outlet pipe.
Remove the heater inlet pipe. Refer to HEATER INLET PIPE REPLACEMENT .

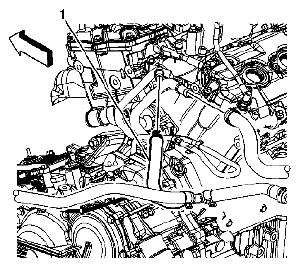

Fig 2: Identifying Heater Outlet Pipe O-Ring
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater outlet pipe (1).
Remove the heater outlet pipe O-ring (2). Discard O-ring.
