Installation Procedure

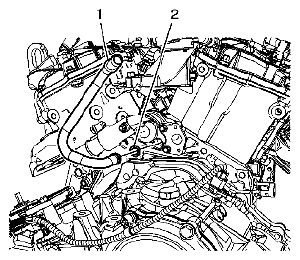

Fig 1: Identifying Heater Inlet Pipe O-Ring

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW heater inlet pipe O-ring.
CAUTION: Refer to FASTENER NOTICE .
Install the heater outlet pipe (1).

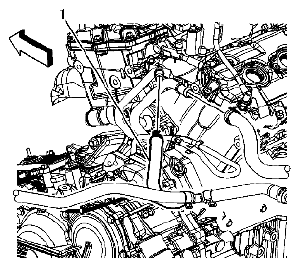

Fig 2: Identifying Heater Pipe Outlet Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install the heater outlet hose (1) to the heater outlet pipe.
Install the heater inlet pipe. Refer to HEATER INLET PIPE REPLACEMENT .
