Removal Procedure

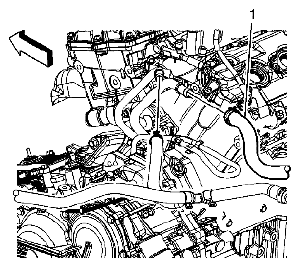

Fig 1: Identifying Heater Pipe Inlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL) or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
Remove the heater pipe inlet hose (1) from the heater inlet pipe.

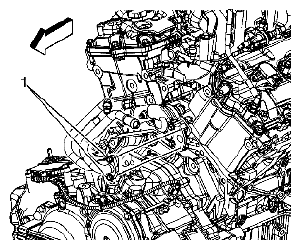

Fig 2: Identifying Heater Inlet Pipe Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the heater inlet pipe housing bolts (1).
Remove the housing.
Remove the heater inlet pipe housing seal. Discard seal.
