Removal Procedure

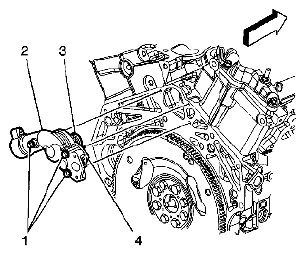

Fig 1: Identifying Engine Coolant Thermostat Housing Bolts And Thermostat Seal
G05465604Courtesy of SUZUKI OF AMERICA CORP.
  1. Partially drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL)  or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
  2. Remove the heater inlet and outlet pipes. Refer to HEATER INLET PIPE REPLACEMENT  and HEATER OUTLET PIPE REPLACEMENT .
  3. Remove the thermostat housing bolts (1).
  4. Remove the housing.
  5. Remove the thermostat (3) and discard the thermostat seal (4).
