Engine Coolant Thermostat Housing Installation

Fig 1: Identifying Gasket Onto Thermostat Housing

Courtesy of SUZUKI OF AMERICA CORP.

Install a NEW gasket onto the thermostat housing.

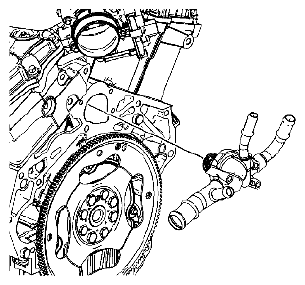

Fig 2: Identifying Thermostat Housing
Courtesy of SUZUKI OF AMERICA CORP.
Install the thermostat housing.

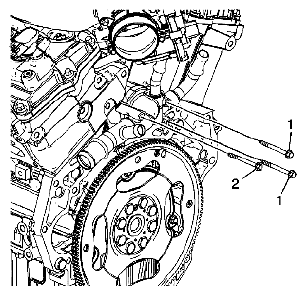

Fig 3: Identifying Thermostat Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Install the thermostat housing bolts. Ensure to install the short bolts (1) and the long bolt (2) in the proper position.
Tightening torque

Tighten the thermostat housing bolts to 10 N.m (89 lb in).

Reference: WATER OUTLET INSTALLATION
