Removal Procedure

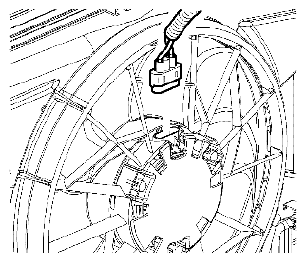

Fig 1: Identifying Electrical Connectors From Fan Motors

Courtesy of SUZUKI OF AMERICA CORP.

Remove the front fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
Drain the coolant. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL) or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
Disconnect the electrical connectors from the fan motors.
Unclip the wire harness from the fan assembly.

Fig 2: Identifying CRFM Closeout Panel Retainers To Condenser
Courtesy of SUZUKI OF AMERICA CORP.
Remove the condenser radiator fan module (CRFM) closeout panel retainers from the condenser.
Remove the CRFM closeout panel from the condenser.
Remove the front impact bar. Refer to FRONT BUMPER IMPACT BAR REPLACEMENT .

Fig 3: Identifying CRFM Mounting Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the CRFM mounting bracket bolts from the radiator support.
Remove the CRFM mounting brackets from the radiator support.

Fig 4: Identifying Radiator Inlet Hose Clamp
Courtesy of SUZUKI OF AMERICA CORP.
Remove the radiator inlet hose clamp (1) from the radiator.
Remove the radiator inlet hose (2) from the radiator.

Fig 5: Identifying Transmission Cooler Lines From Radiator
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the transmission cooler lines from the radiator.
Unclip the transmission cooler lines from the fan assembly.

Fig 6: Identifying Radiator Fan Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the fan assembly bolts from the radiator.
Remove the fan assembly from the radiator.
Position the condenser and radiator assembly forward of the right hand front impact bar bracket.
Remove the fan assembly from the vehicle.
