Installation Procedure

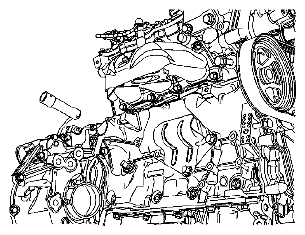

Fig 1: Identifying Coolant Heater
G05465617Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the coolant heater.
  2. Connect the coolant heater cord to the coolant heater.
  3. Lower the vehicle.
  4. Refill the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LY7 GE 47716 FILL)  or COOLING SYSTEM DRAINING AND FILLING (LY7 STATIC FILL) .
