Starter Removal

Reference: DRIVE BELT IDLER PULLEY REMOVAL

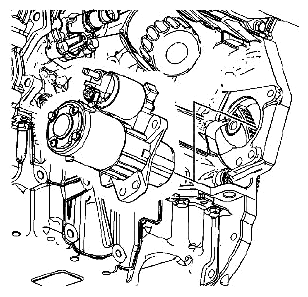

Fig 1: Identifying Starter Motor Bolts

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the starter motor bolts.

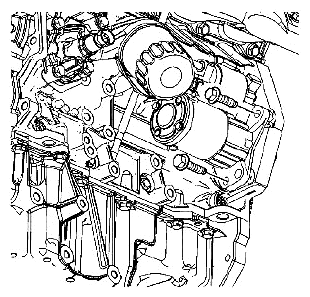

   Fig 2: Identifying Starter Motor

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the starter motor.
