Removal Procedure

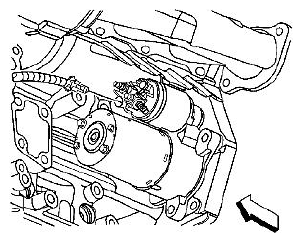

Fig 1: Identifying Starter Solenoid BAT Terminal Nut

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the front catalytic convertor. Refer to CATALYTIC CONVERTER REPLACEMENT - LEFT SIDE .
Remove the starter solenoid BAT terminal nut.

Fig 2: Identifying Engine Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the engine harness electrical connector.

Fig 3: Identifying Starter Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the starter bolts and starter.
